Engineered Detail
Purpose-designed components engineered as a complete rotor system, combining individually assembled construction with practical assembly solutions.

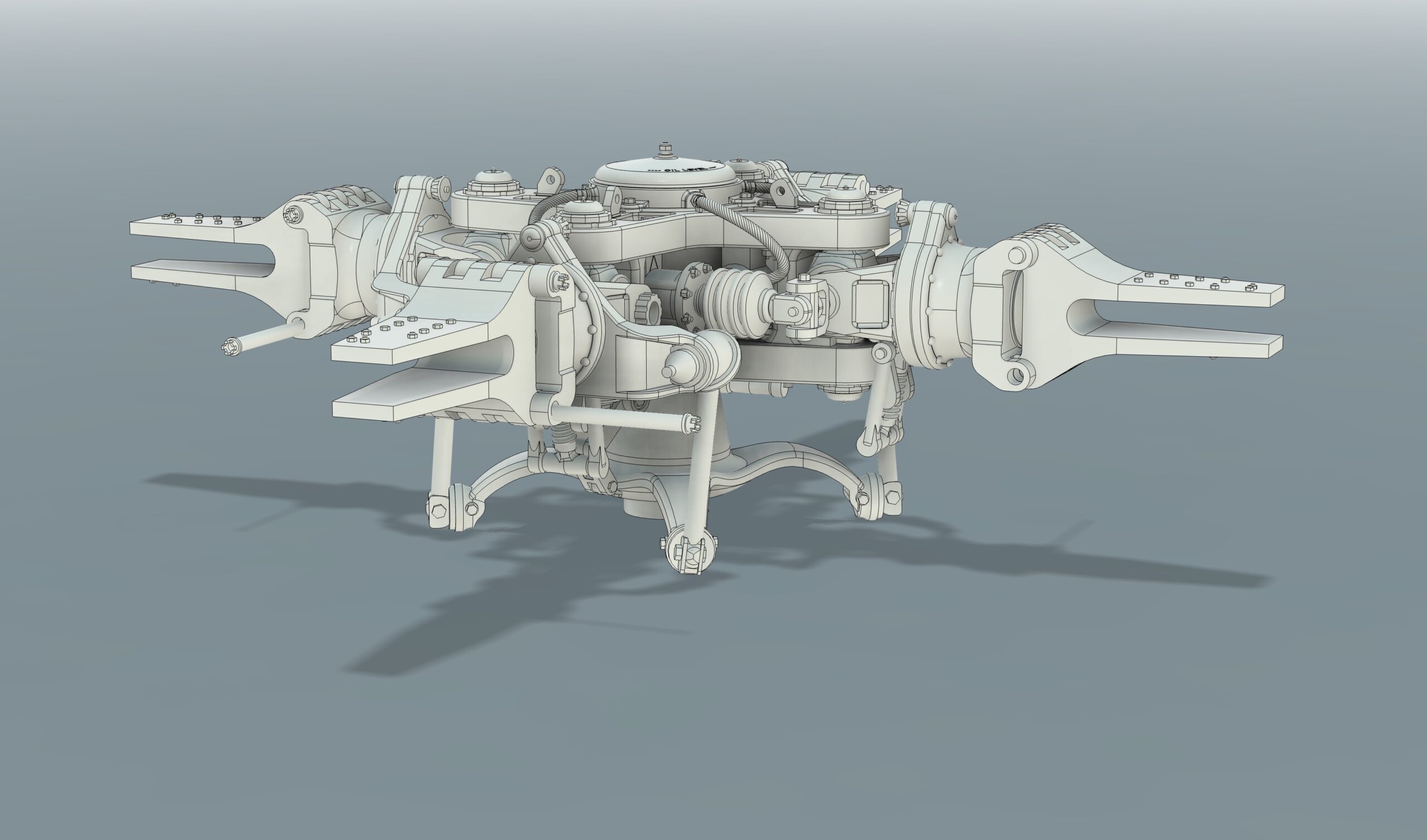

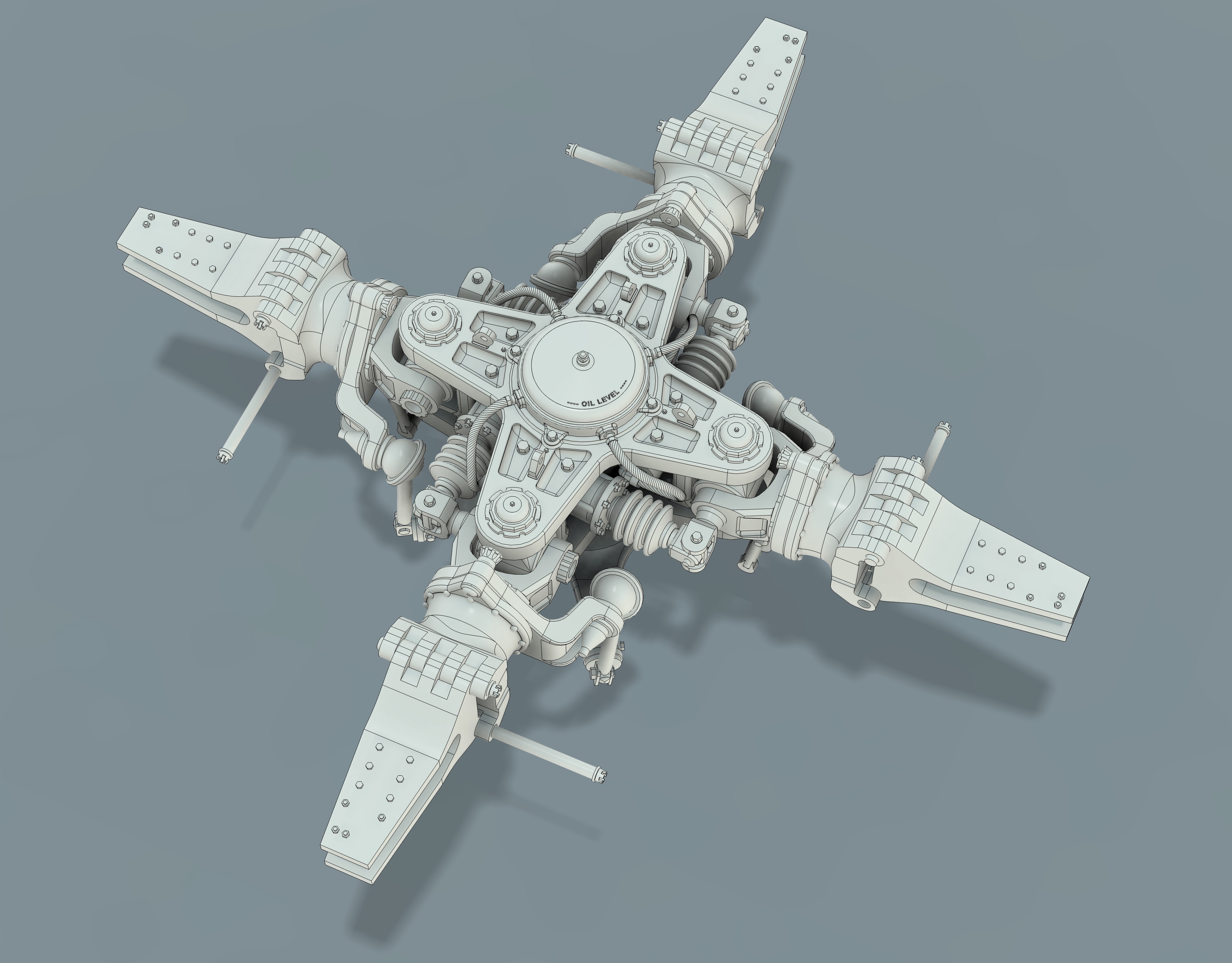

28-Part Main Rotor Assembly
Built from 28 individually assembled components to reproduce the layered construction of the complete rotor head.

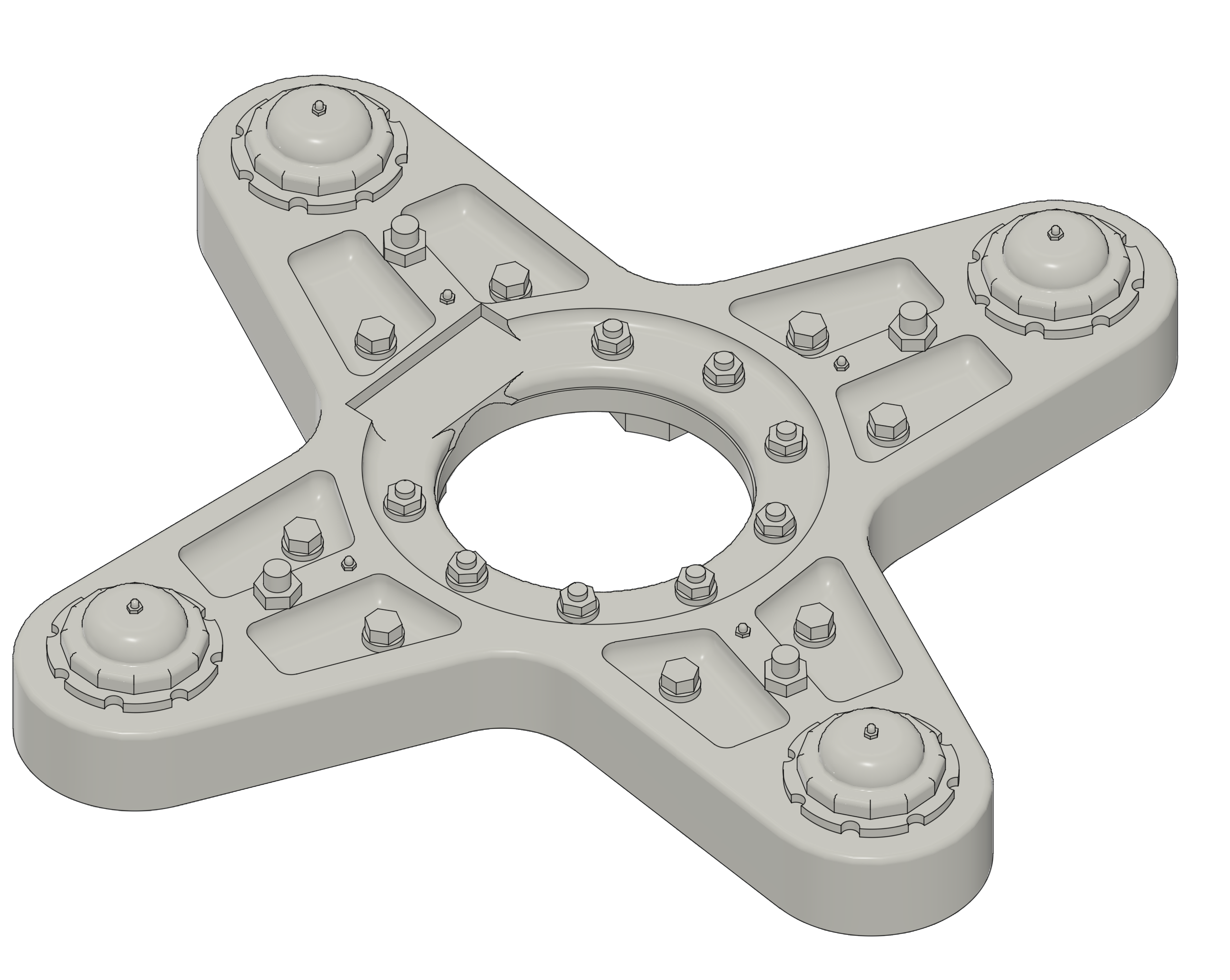

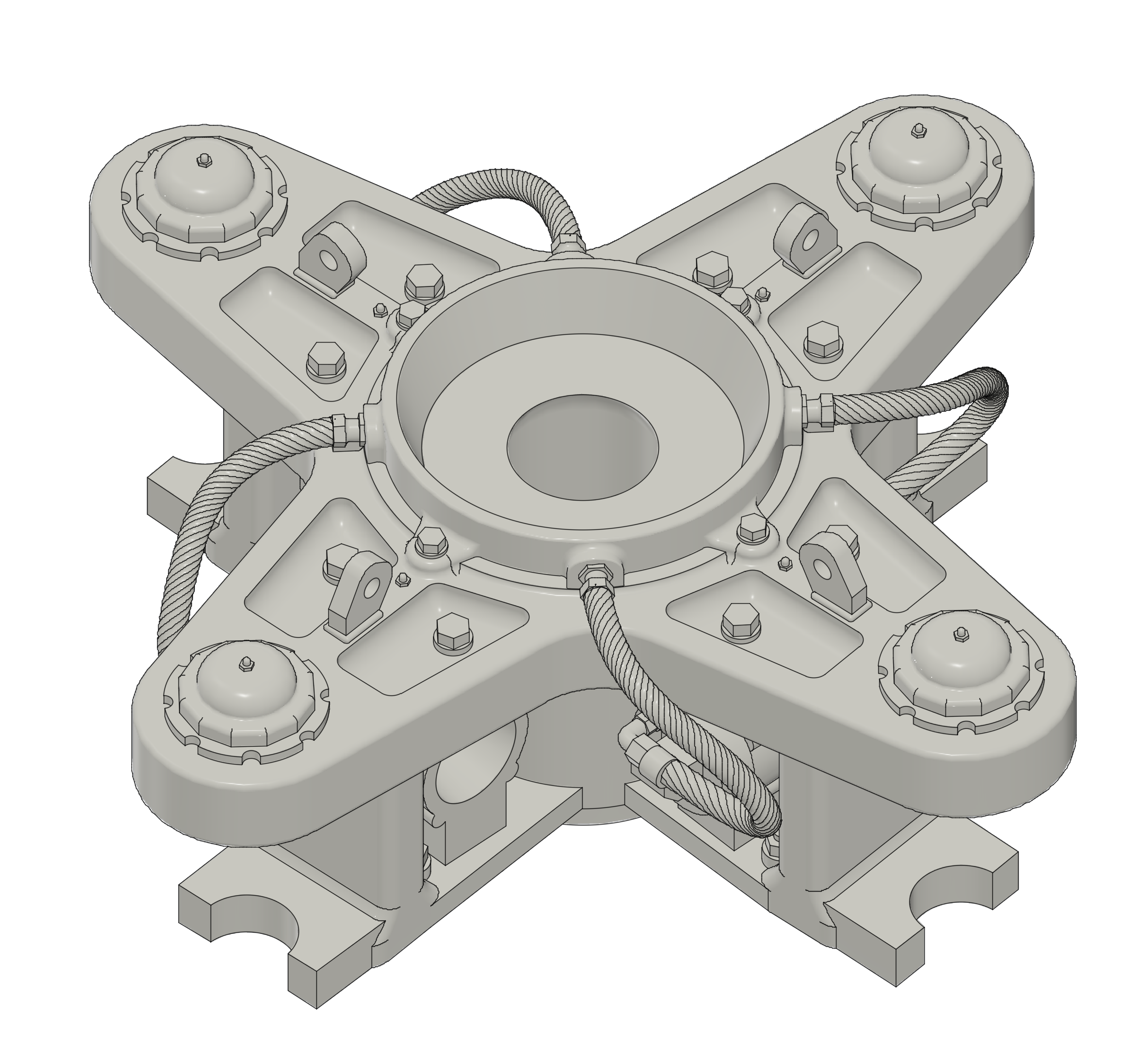

Multi-Part Main Rotor Hub
Pre-aligned hub structure with integrated oil lines, developed for simplified assembly and consistent alignment.

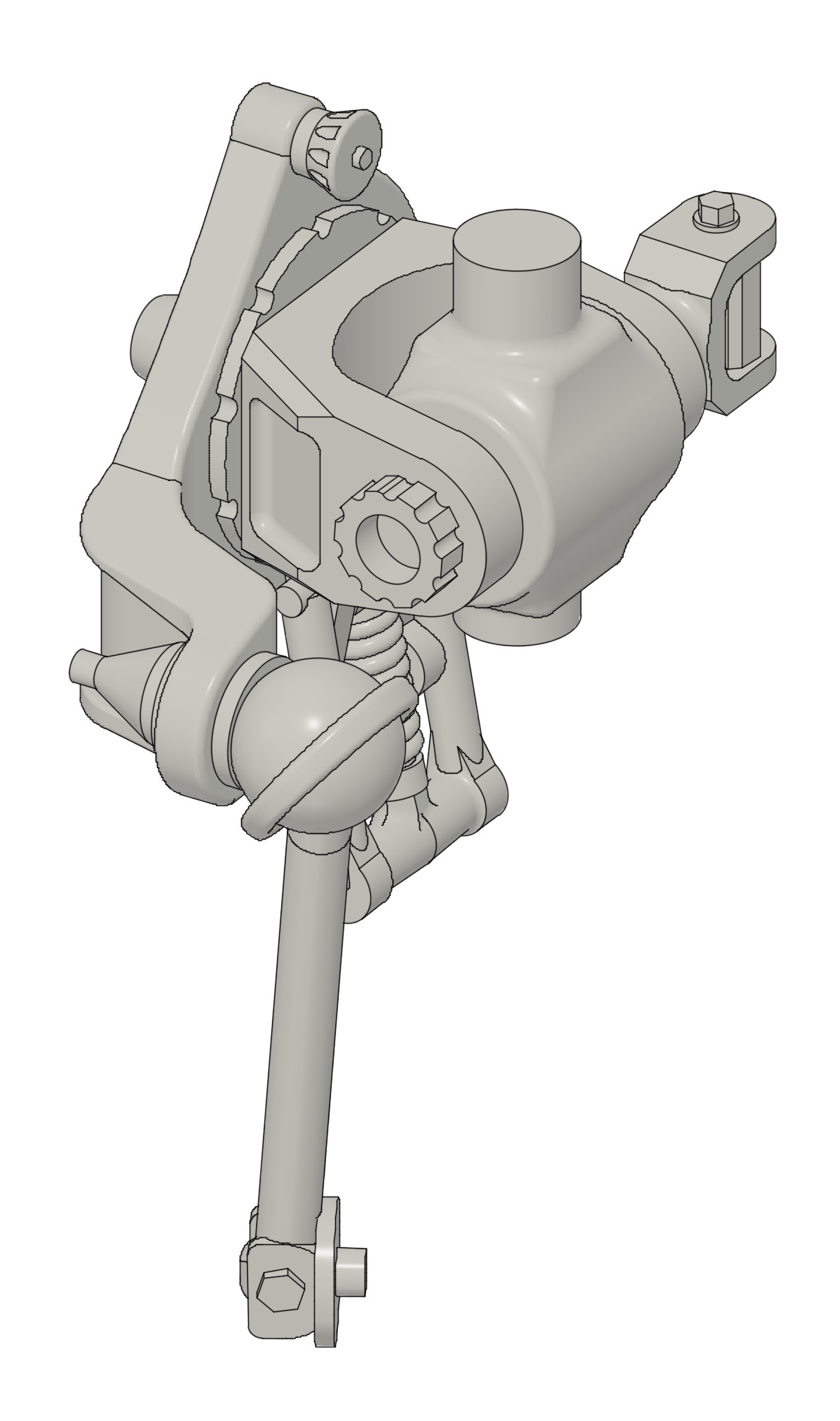

Integrated Pitch Control Linkage
Combined linkage and pivot assembly eliminates complex alignment while preserving the appearance of the original mechanism.
What’s Included
- 28-part main rotor assembly
- Multi-part main rotor hub
- Integrated pitch control linkage assemblies

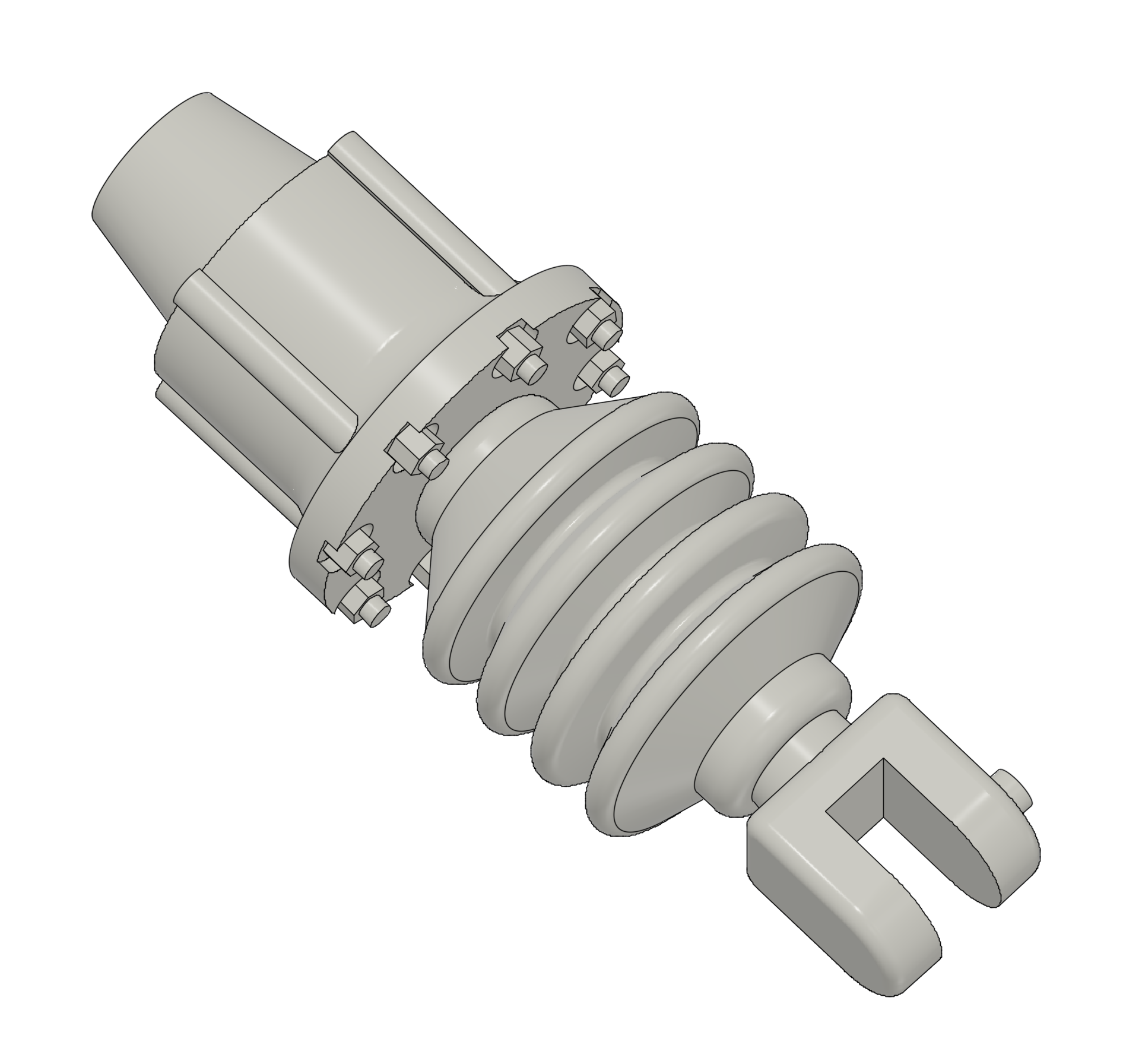

- Rotor dampers
Key Features
- 28 individually assembled rotor components
- Pre-aligned hub construction
- Integrated oil line detail
- Simplified linkage installation
- Designed for Italeri 1:48 Wessex and H-34 kits
Compatibility
Suitable for most 1:48 Sikorsky S-58 and H-34 family kits. Tested on the Italeri Wessex and Trumpeter H-34 kit families listed below.
Italeri — Westland Wessex & H-34 Family
- Wessex UH.52720
- Wessex HAS.32732
- Wessex HAS.12744
- H-34G.III / UH-34J2712
- H-34A / UH-34D2776
Trumpeter — H-34 Family
- H-34 US Marines02881
- H-34 US Navy Rescue02882
- CH-34 US Army Rescue02883
- HH-34J USAF Combat Rescue02884
- VH-34D Marine One02885
- UH-34D Seahorse02886
Assembly Video & Guide
Watch the full assembly walkthrough below. A printed guide is included with the set — always refer to the online guide here for the latest assembly instructions.
